WeatherSTEM

"WeatherSTEM is a platform built by CEO Edward Mansouri ... [designed]to infuse K-12 STEM curriculum with live data ... [It] consumes live information to create and deliver interactive activities and assessments. The platform combines data from weather instruments, agricultural probes, Web cameras and other sensors to create immersive science education experiences and an introduction to "Big Data" and computer programming. " - WeatherSTEM.com



The UGA Tifton WeatherSTEM website provides real-time measurements and a daily time-lapse video to anyone with internet access at http://tift.weatherstem.com/ugatifton. Daily updates and videos are also available on the Facebook page as well as Twitter.


Weather Station

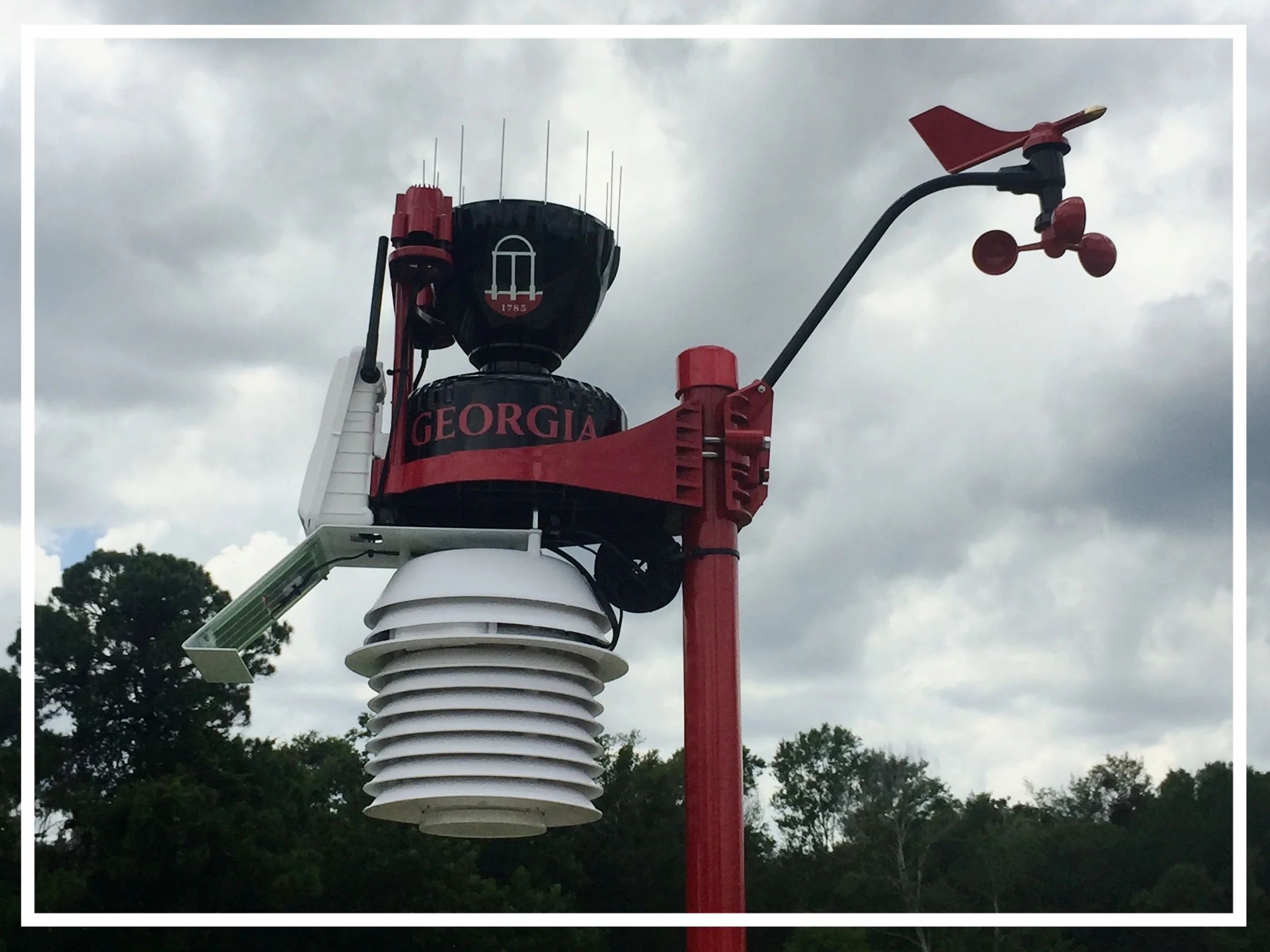

The Integrated Sensor Suite (ISS) measures wind speed and direction, rainfall (gauge and rate), temperature, wind chill, heat index, UV radiation, Solar radiation, humidity, dewpoint, and air pressure.



Separate sensors measure soil and leaf temperature and moisture, shade temperature and humidity, and pond temperature.

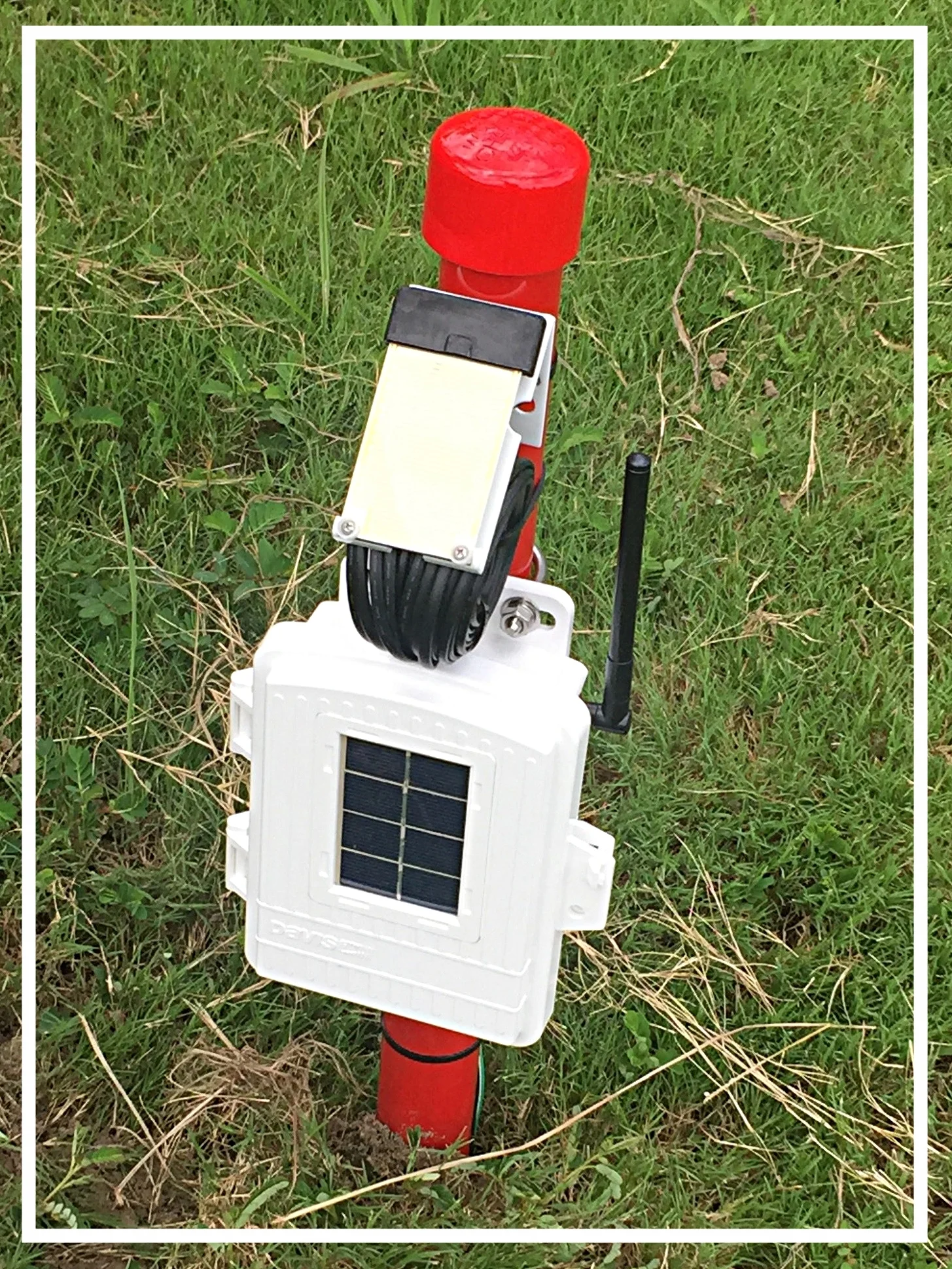

Moisture & Temperature             of Leaves and Soil                      at 6in, 1ft, 3ft, & 6ft

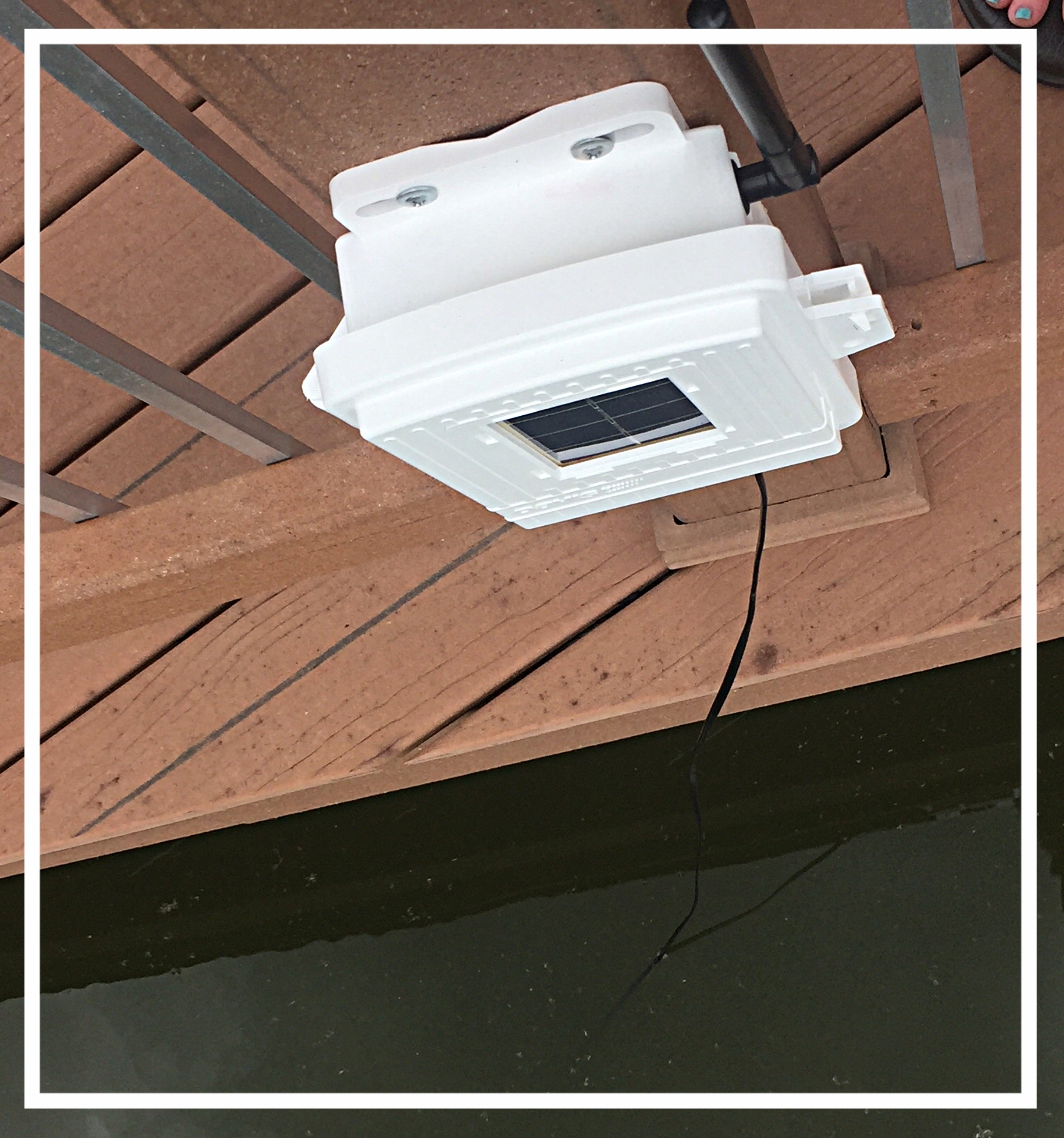

Water temperature at pond floor

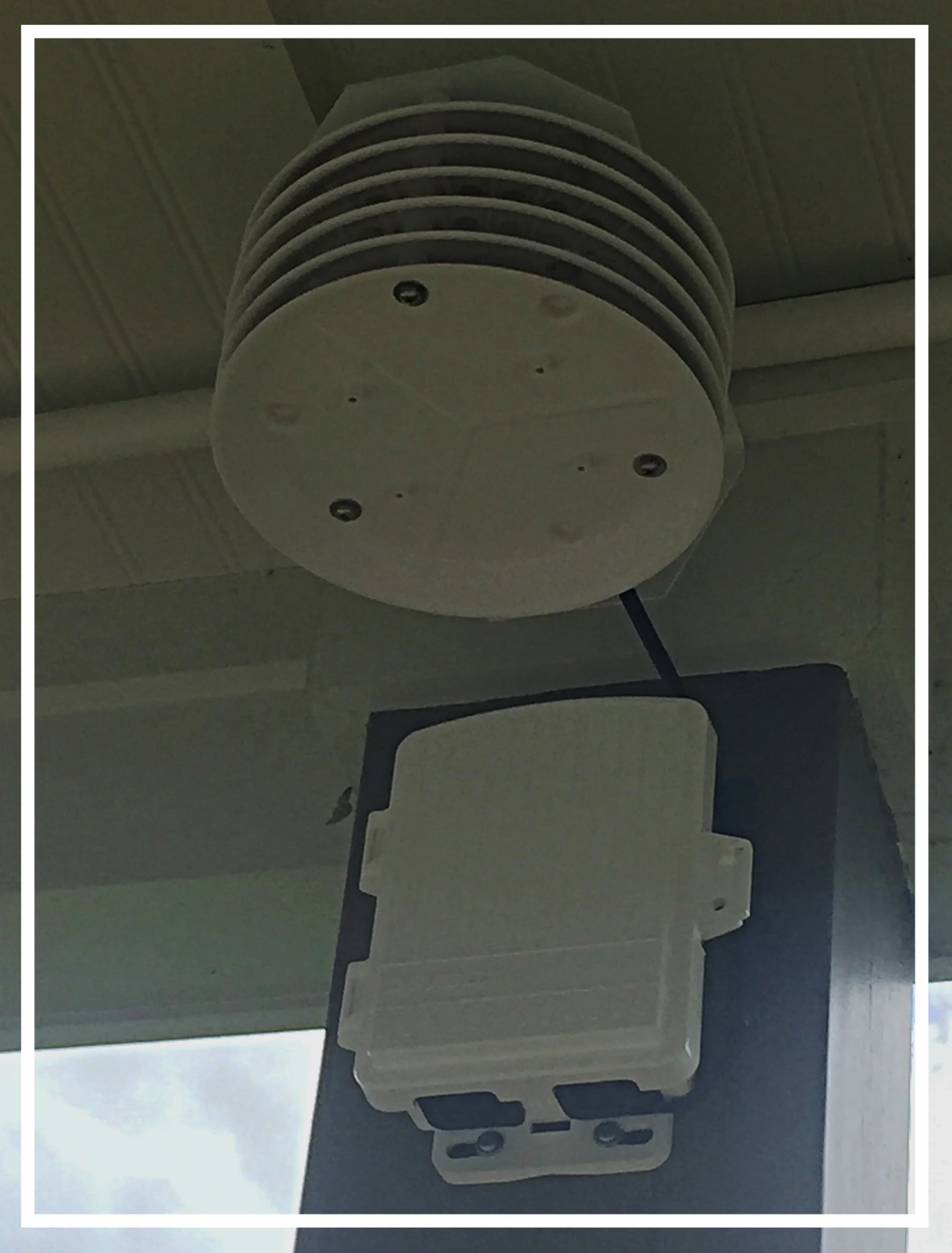

Shade Temperature & humidity




Snapshot of skycam


Layout of sensor stations

Solar Radiation / Temperature / UV Radiation

June 21, 2018

Soil temperatures - 6ft (geothermal level), 3ft, 1ft, 6in

Nov 29, 2017 - June 21, 2018

Soil temps at 6 ft, 3 ft, 1 ft, & 6 in; Pond Temp, Air Temp

Nov 29, 2017 - June 21, 2018

All temperatures - Soil temps at 6 ft, 3 ft, 1 ft, & 6 in; Dewpoint; Heat Index, Leaf Temp, Pond Temp, Shade Temp, Air Temp, Wet Bulb Globe Temp, Wind Chill

Nov 29, 2017 - June 21, 2018

All temperatures - Soil temps at 6 ft, 3 ft, 1 ft, & 6 in; Dewpoint; Heat Index, Leaf Temp, Pond Temp, Air Temp, Wet Bulb Globe Temp, Wind Chill

June 21, 2018

Pond temperature / Air temperature

Aug 1, 2017 - June 21, 2018

Air Pressure

Aug 1, 2017 - June 21, 2018

Wind Direction

Aug 1, 2017 - June 21, 2018

Rain Gauge / Rain Rate

Aug 1, 2017 - June 21, 2018

Solar Radiation / UV Radiation

Aug 1, 2017 - June 21, 2018

Wind Gust / Avg Wind Speed

Aug 1, 2017 - June 21, 2018

Air Humidity / Shade Humidity

Aug 1, 2017 - June 21, 2018

Dew

Aug 1, 2017 - June 21, 2018
